1967 - Trail 90 'K0


1967

The 1967 Honda CT90 'K0, continued the use of model designations that started with the letter 'K", followed by a number. The 'K0 was manufactured in 1966, 1967 and 1968. And even though there were some major changes, the model designation of 'K0 remained in all those years. The early version of the 1967, CT90 'K0's was essentially the same as the 1966, CT90 'K0. However, about half way through 1967, starting with Serial on VIN number CT90-122551, a major improvement to the CT90 'K0 was the addition of the Dual Range Sub Transmission. This was an easier way to get a low range gearing for climbing hills. Instead of having to move the large rear overlay sprocket to bolt onto the regular rear drive chain sprocket, and adding a drive chain extra segment, the rider simply needed to come to a stop, get into neutral gear, flip a mechanical lever, then take off again.


Model ID
CT90 'K0
Common Name
Honda Trail 90
Serial or VIN Number Begins At
CT90 - 1xxxxx for the Early Model unknown starting number (continuation of the 1966 model).
CT90 - 122551 for the Later Model

Engine Size
89cc
Engine Type
Overhead Camshaft
Carburetor Type
High Altitude Knob Present
No
Fuel Petcock Positions - ON RES OFF
Jets - Factory - Other
Transmission Speeds
4 Speeds
Transmission Shift Pattern (Toe)
N
1
2
3
4
High - Low Gearing Option
Early Model -
Large Rear Overlay Sprocket with extra chain segment.
Later Model -
Dual Range Sub Transmission.

Suspension Front
Bottom Link
Suspension Rear
Telescopic Shocks
Speedometer Highest Speed
60 mph
Speedometer Indicator Lights
Green = Neutral
Amber = High Beam
Speedometer Trip Odometer
No

Brake Activation Front
Right Handlebar Lever
Brake Activation Rear
Right Foot Lever and Left Handlebar Lever

Rear Cargo Rack, Size & Shape
Small with Flat Surface or Large with Rear Vertical Bar mounted to Small Rack.

Handlebar Rotates
No
Handlebar Color
Chrome Tube Style

Paint Color
Scarlet Red
Yellow

Auxiliary Gas Tank
No

Turn Signals
No

Other Unique Features

RED

Early Model - Right Side


Early Model - Left Side


Early Model - Front

Early Model - Rear


Early Model - Engine Right Side

Early Model - Engine Left Side


Early Model - Speedometer.


Early Model - Large Rear Overlay Sprocket

In Use (Low Range).

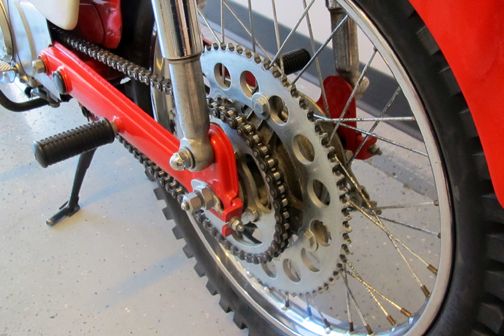

Stored (High Range).


Short Drive Chain (removed when large rear overlay sprocket is stored).





Later Model - Right Side


Later Model - Left Side


Later Model - Front


Later Model - Rear


Later Model - Engine Right Side (owner painted engine case black)


Later Model - Engine Left Side (owner painted engine case black)


Later Model - Speedometer








Yellow

Early Model - Right Side


Early Model - Left Side


Early Model - Large Rear Overlay Sprocket




Later Model - Right Side


Later Model - Left Side


Later Model - Front


Later Model - Rear


Later Model - Speedometers



Later Model - Handlebar
